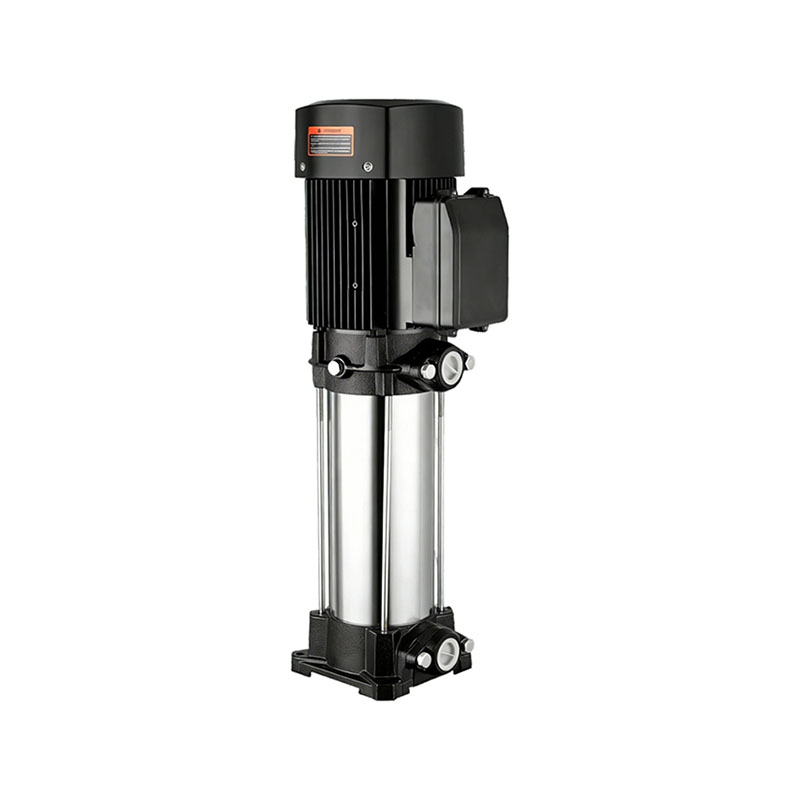

PDL Vertical multi-stage centrifugal pump

Feature：

• This CDL pump adopts a vertical mounting structure with the inlet and the outlet both arranged horizontally. It can be designed with additional stages to meet different head requirements. Designed with a compact structure, low noise, and space-saving installation, it is ideal for environments with limited space such as high-rise buildings. The pump and motor are equipped with a single-face seal, while the fixed flange uses an O-ring for radial sealing. The pump is suitable for conveying thin, clean, non-flammable, non-explosive liquids free of solid particles or fibers.

Inquiry Now Pdf

PREV：No previous article NEXT：SPL Plastic Portable Submersible Pump

Specifications & Applications
Product Drawings
Technical Parameters
Get A Quote

PDL Vertical multi-stage centrifugal pump

SPECIFICATION

• Capacity: up to 6 m3/h

• Head: up to 153 meters

• Power: 1.1kW(1.5HP) to 2.2 kW (3HP)

• Power supply: single-phase or three-phase

• Protection class: IP55

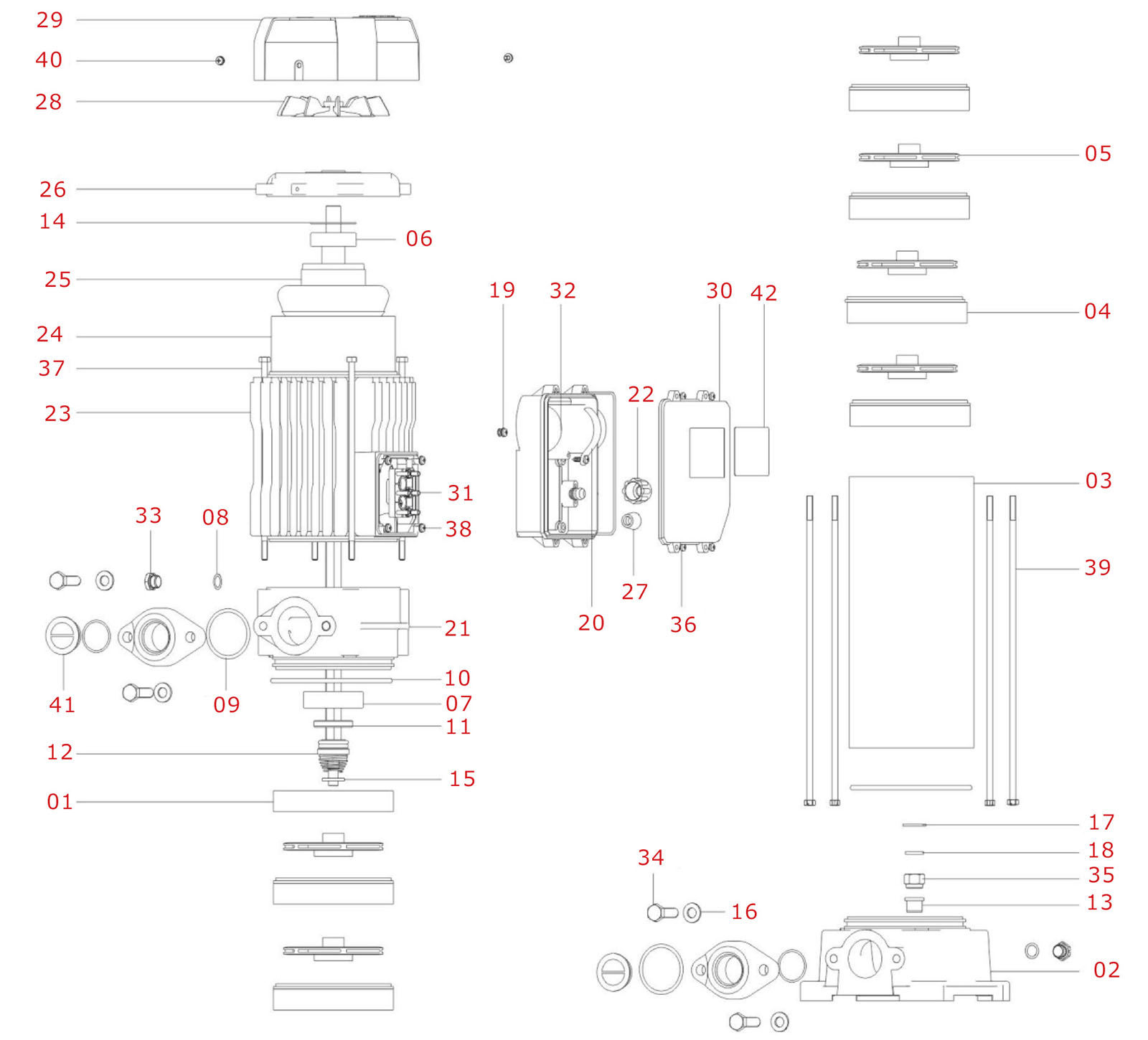

Core Parts

NO.	PART NAME	NO.	PART NAME	NO.	PART NAME
01	Final guide vane	15	Bearing sleeve	29	Fan shroud
02	Pump housing	16	Flat washer	30	Terminal box assembly
03	Pump casing	17	Flat washer	31	Terminal posts
04	Guide vane	18	Spring washer	32	Running capacitor
05	Impeller	19	External tooth locking washer	33	Venting valve
06	Deep groove ball bearing	20	Capacitor clip	34	Fully threaded hex head bolts
07	Deep groove ball bearing	21	Connecting piece	35	I-type hex nuts
08	O-ring	22	Cable lug	36	Phillips-head self-tapping screws
09	O-ring	23	Housing	37	Hex head bolts
10	O-ring	24	Wound stator core	38	Phillips-head flange screws
11	Skeleton oil seal	25	Rotor	39	Hex head bolts
12	Mechanical seal	26	Rear end cover	40	Phillips-head flange screws
13	Shaft sleeve	27	Cable sheath	41	Dust cover
14	Wave spring	28	Fan	42	Nameplate

TECHNICAL PARAMETER

Model	Outlet	Motor power		Rated voltage	Rated current	Rated flow	Rated head	Max. flow	Max. head	Impeller passage
(50Hz)	(mm)	(kW)	(HP)	(V)	(A)	(m³/h)	(m)	(m³/h)	(m)	(mm)
PDL2-6	25	1.1	1.5	220	7	2	53	4	69	-
PDL2-7	25	1.1	1.5	220	7.82	2	65.5	4	82	-
PDL2-8	25	1.5	2	220	9.5	2	73	4	94	-
PDL2-9	25	1.5	2	220	9.5	2	84	4	105	-
PDL2-11	25	1.8	2.5	220	11.3	2	102	4	130	-
PL2-6	25	1.1	1.5	380	2.5	2	53	4	69	-
PL2-7	25	1.1	1.5	380	2.5	2	65.5	4	82	-
PL2-8	25	1.5	2	380	3.4	2	73	4	94
PL2-9	25	1.5	2	380	3.4	2	84	4	105	-
PL2-11	25	1.8	2.5	380	4	2	102	4	130	-
PL2-13	25	2.2	3	380	4.8	2	122	4	153	-
PDL4-4	25	1.1	1.5	220	7	4	39	6	47	-
PDL4-5	25	1.5	2	220	9.4	4	48	6	61	-
PDL4-6	25	1.5	2	220	9.4	4	58	6	74	-
PDL4-7	25	1.8	2.5	220	11.3	4	69	6	86	-
PL4-4	25	1.1	1.5	380	2.5	4	39	6	47	-
PL4-5	25	1.5	2	380	3.4	4	48	6	61	-
PL4-6	25	1.5	2	380	3.4	4	58	6	74	-
PL4-7	25	1.8	2.5	380	4	4	69	6	86	-
PL4-8	25	2.2	3	380	4.8	4	77	6	98	-
PL4-10	25	2.2	3	380	4.8	4	96	6	116	-

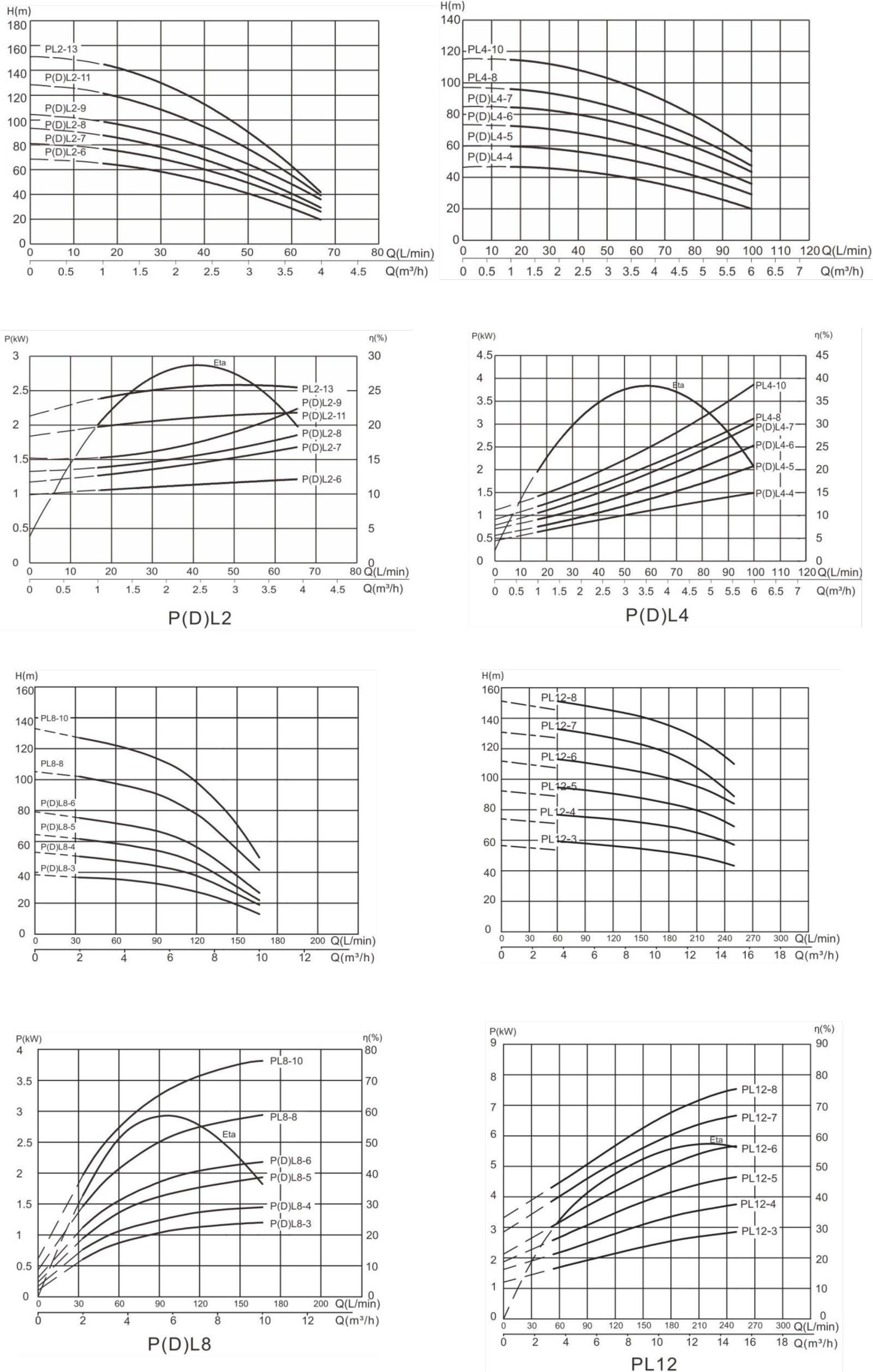

PERFORMANCE CURVE

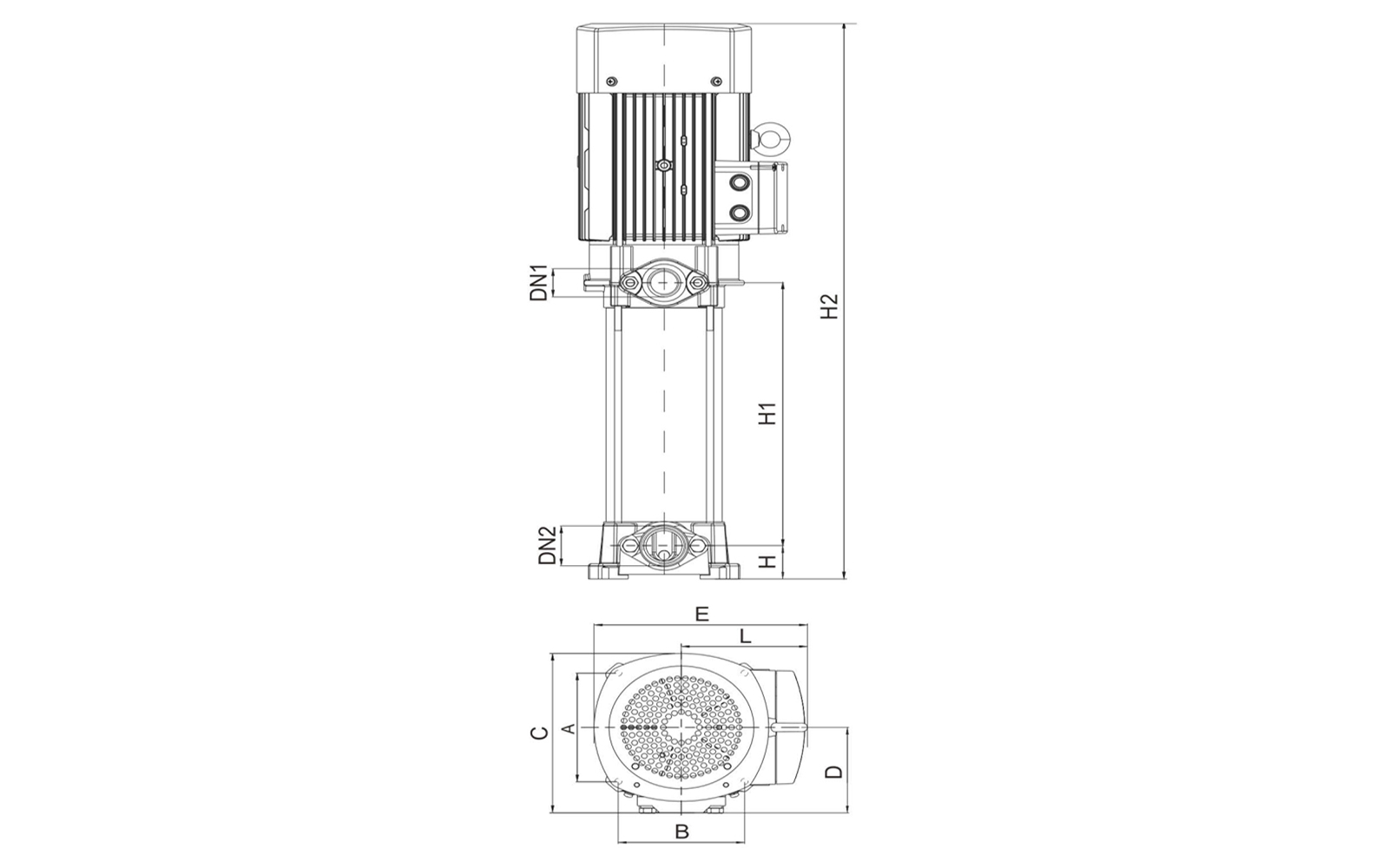

DIMENSIONS TABLE

DIMENSION & WEIGHT

Model	N.W.	G.W.	Packing dimension
Model	(mm)	(mm)	(mm)
PDL2-6	22	24	536170230
PDL2-7	23	25	560170230
PDL2-8	25	27.5	596170230
PDL2-9	26	28.5	620170230
PDL2-11	28	31	698170230
PL2-6	21	23	536170230
PL2-7	22	24	560170230
PL2-8	24	26	596170230
PL2-9	24	26	620170230
PL2-11	26	28.5	698170230
PL2-13	28	31	746170230
PDL4-4	21	23	488170230
PDL4-5	24	26	524170230
PDL4-6	24	26	548170230
PDL4-7	26	28.5	602170230
PL4-4	20	22	488170230
PL4-5	22	24	524170230
PL4-6	23	25	548170230
PL4-7	24	26	602170230
PL4-8	26	28.5	626170230
PL4-10	31	34	674170230

Model		Dn1	Dn2	H	H1	H2	A	B	C	D	E	L
Single phase	Three phase	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
PDL2-6	PL2-6	G1	G1	43.5	224.5	536	128	85	170	85	230	145
PDL2-7	PL2-7	G1	G1	43.5	248.5	560	128	85	170	85	230	145
PDL2-8	PL2-8	G1	G1	43.5	272.5	596	128	85	170	85	230	145
PDL2-9	PL2-9	G1	G1	43.5	296.5	620	128	85	170	85	230	145
PDL2-11	PL2-11	G1	G1	43.5	344.5	698	128	85	170	85	230	145
PDL2-13	PL2-13	G1	G1	43.5	392.5	746	128	85	170	85	230	145
PDL4-4	PL4-4	G1	G1	43.5	176.5	488	128	85	170	85	230	145
PDL4-5	PL4-5	G1	G1	43.5	200.5	524	128	85	170	85	230	145
PDL4-6	PL4-6	G1	G1	43.5	224.5	548	128	85	170	85	230	145
PDL4-7	PL4-7	G1	G1	43.5	248.5	602	128	85	170	85	230	145
PDL4-8	PL4-8	G1	G1	43.5	272.5	626	128	85	170	85	230	145
PDL4-10	PL4-10	G1	G1	43.5	320.5	674	128	85	170	85	230	145
