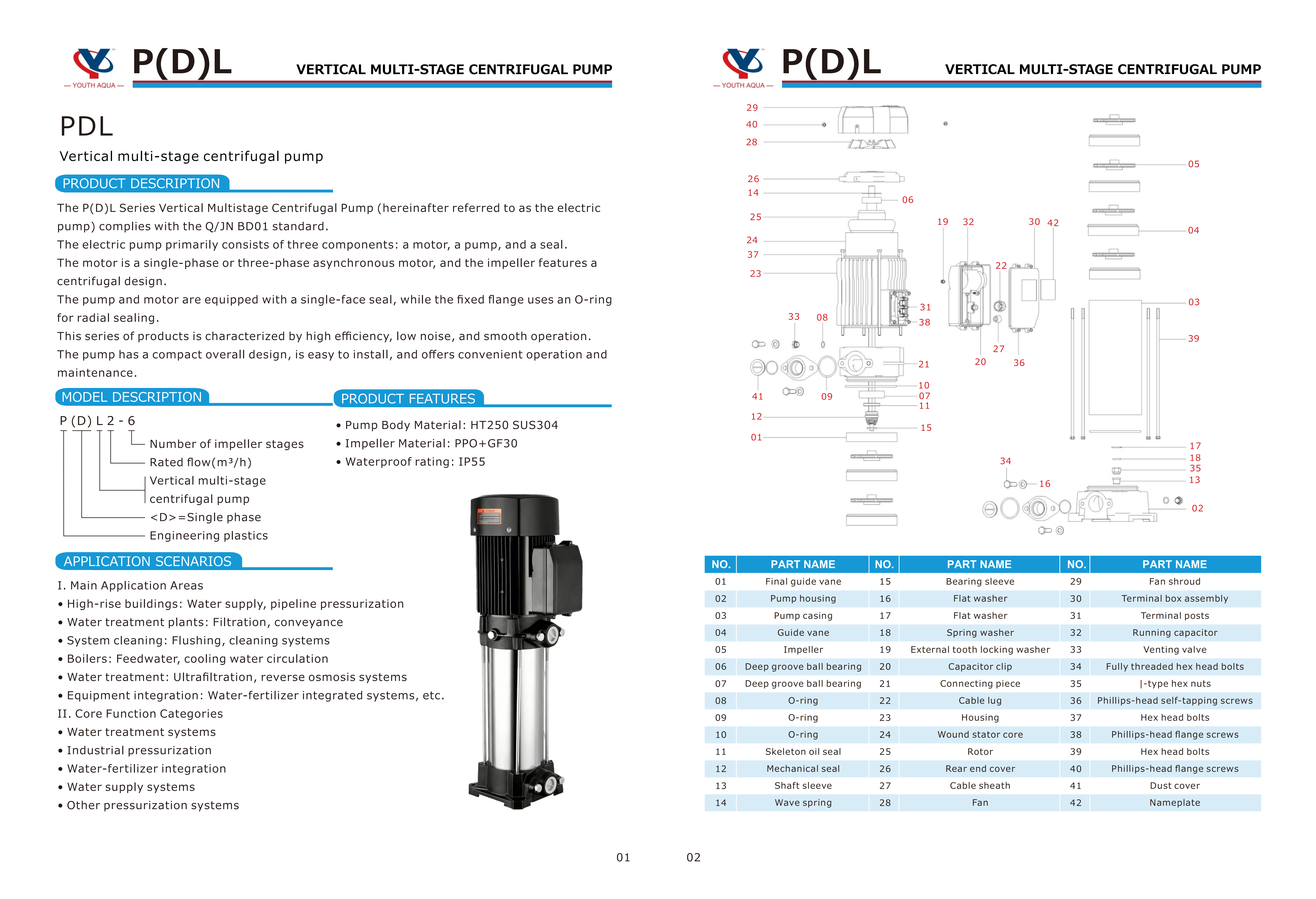

The P(D)L Series Vertical Multistage Centrifugal Pump (hereinafter referred to as the electric pump) complies with the Q/JN BDO1 standard.
The electric pump primarily consists of three components: a motor, a pump, and a seal.
The motor is a single-phase or three-phase asynchronous motor, and the impeller features a centrifugal design.
The pump and motor are equipped with a single-face seal, while the fixed flange uses an O-ring for radial sealing.
This series of products is characterized by high efficiency, low noise, and smooth operation.
The pump has a compact overall design, is easy to install, and offers convenient operation and maintenance.

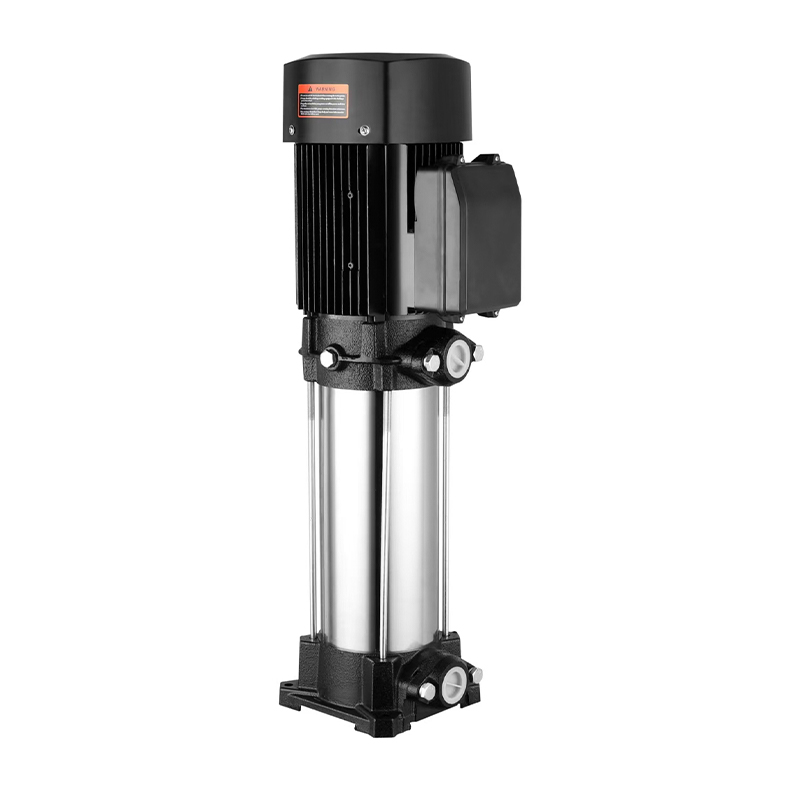

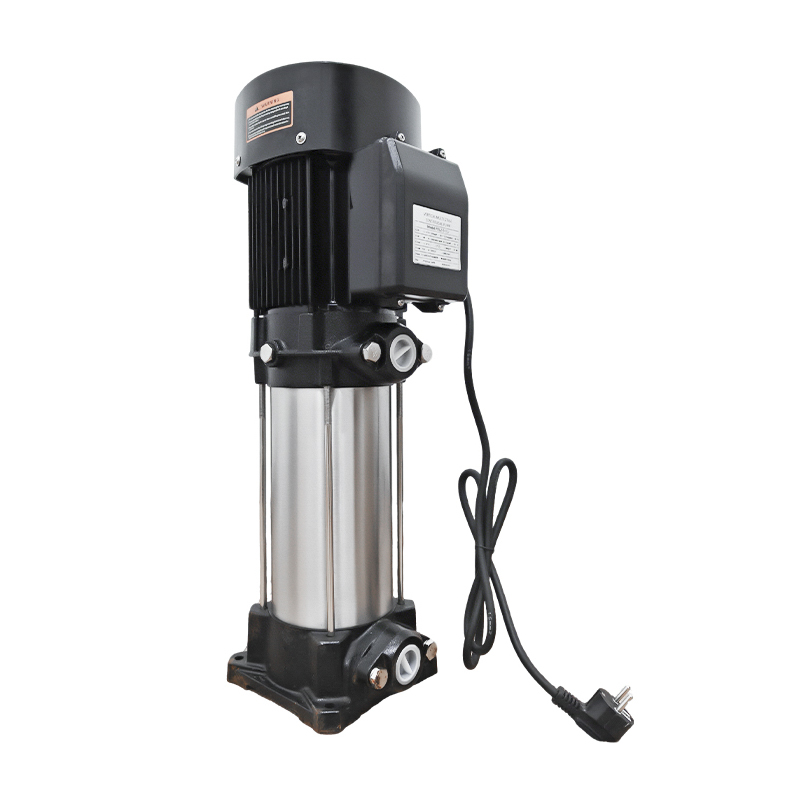

P(D)L Vertical Multi-Stage Centrifugal Pump
-
PRODUCT FEATURES
• Pump Body Material:HT250 SUS304
• Impeller Material: PPO+GF30
• Waterproof rating: IP55
APPLICATION SCENARIOS
I. Main Application Areas
•High-rise buildings: Water supply, pipeline pressurization
•Water treatment plants: Filtration, conveyance
•System cleaning: Flushing, cleaning systems
•Boilers: Feedwater, cooling water circulation
• Water treatment: Ultrafiltration, reverse osmosis systems
•Equipment integration: Water-fertilizer integrated systems, etc.
II. Core Function Categories
•Water treatment systems
•Industrial pressurization
•Water-fertilizer integration
•Water supply systems

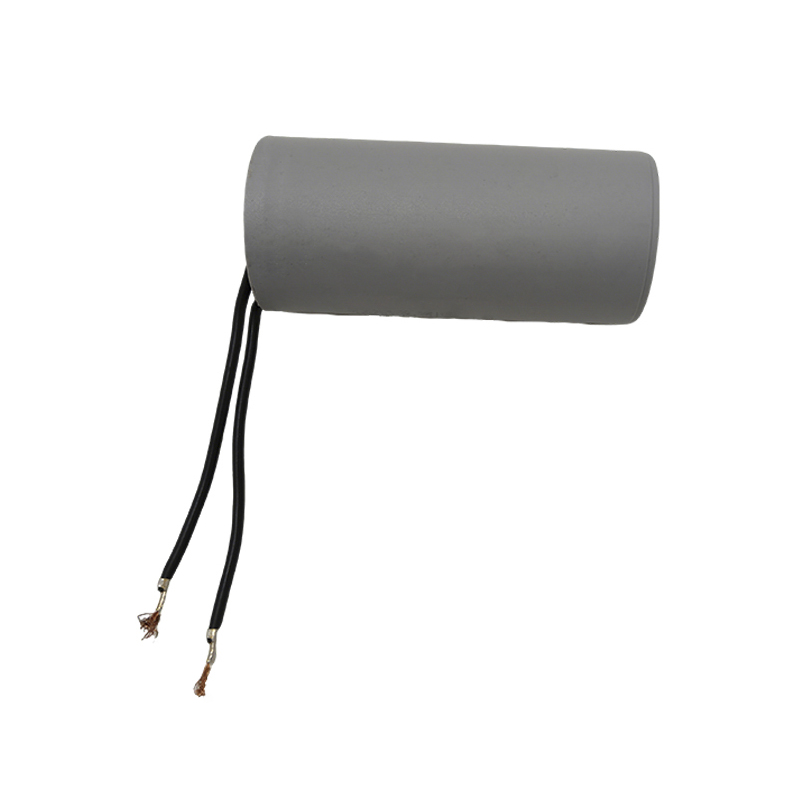

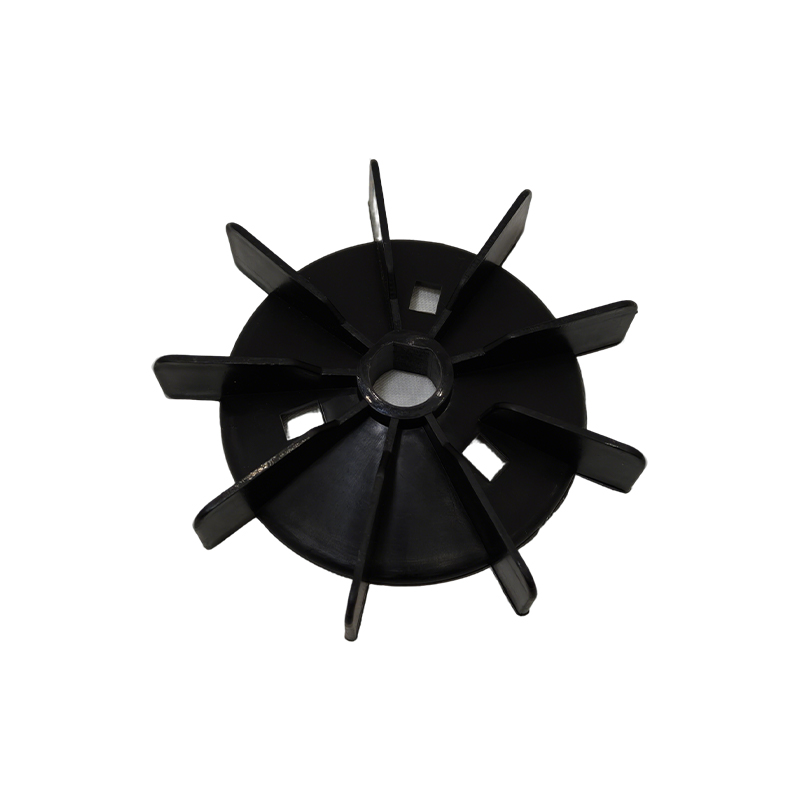

•Other pressurization systemsCore Parts
-
-

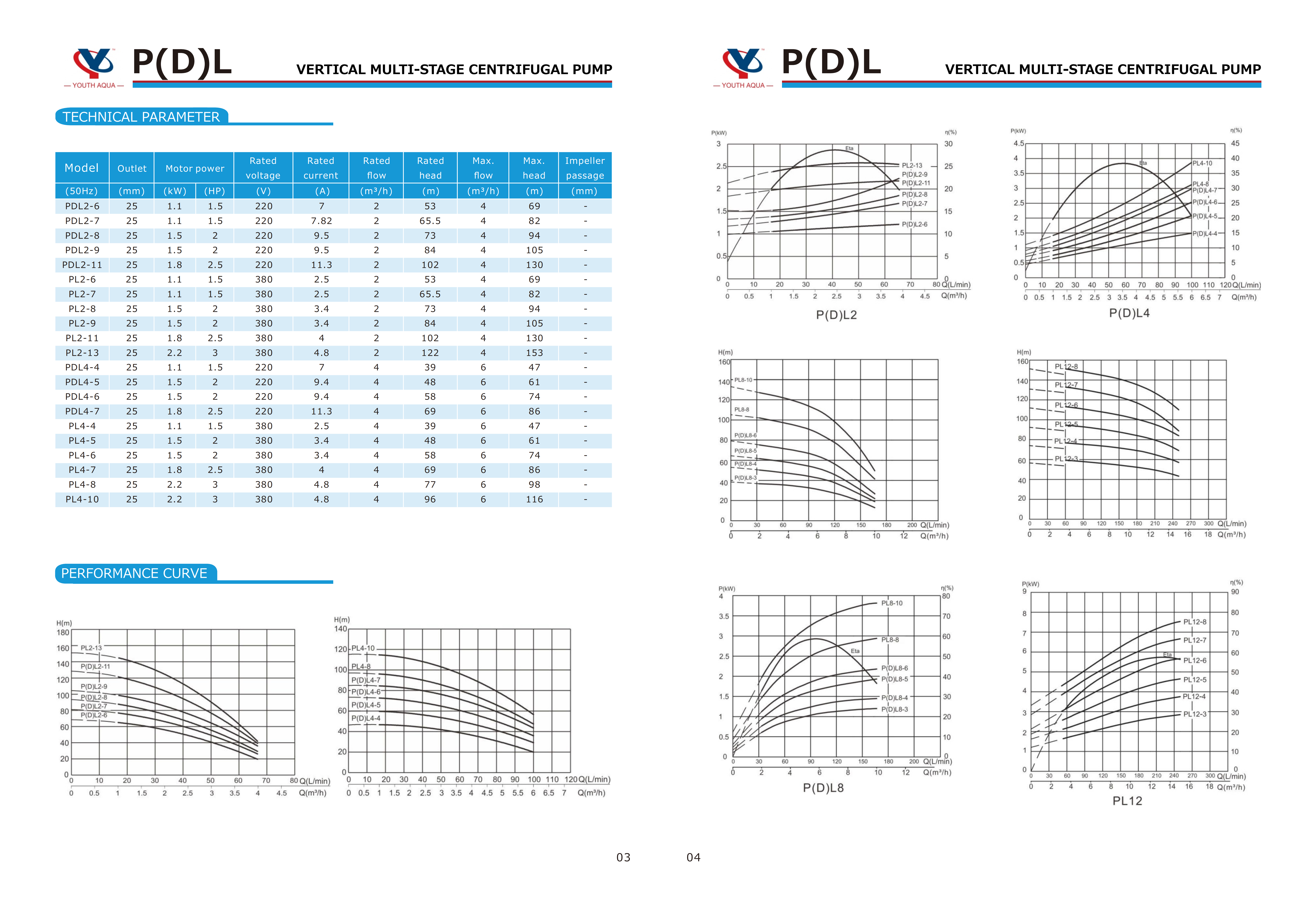

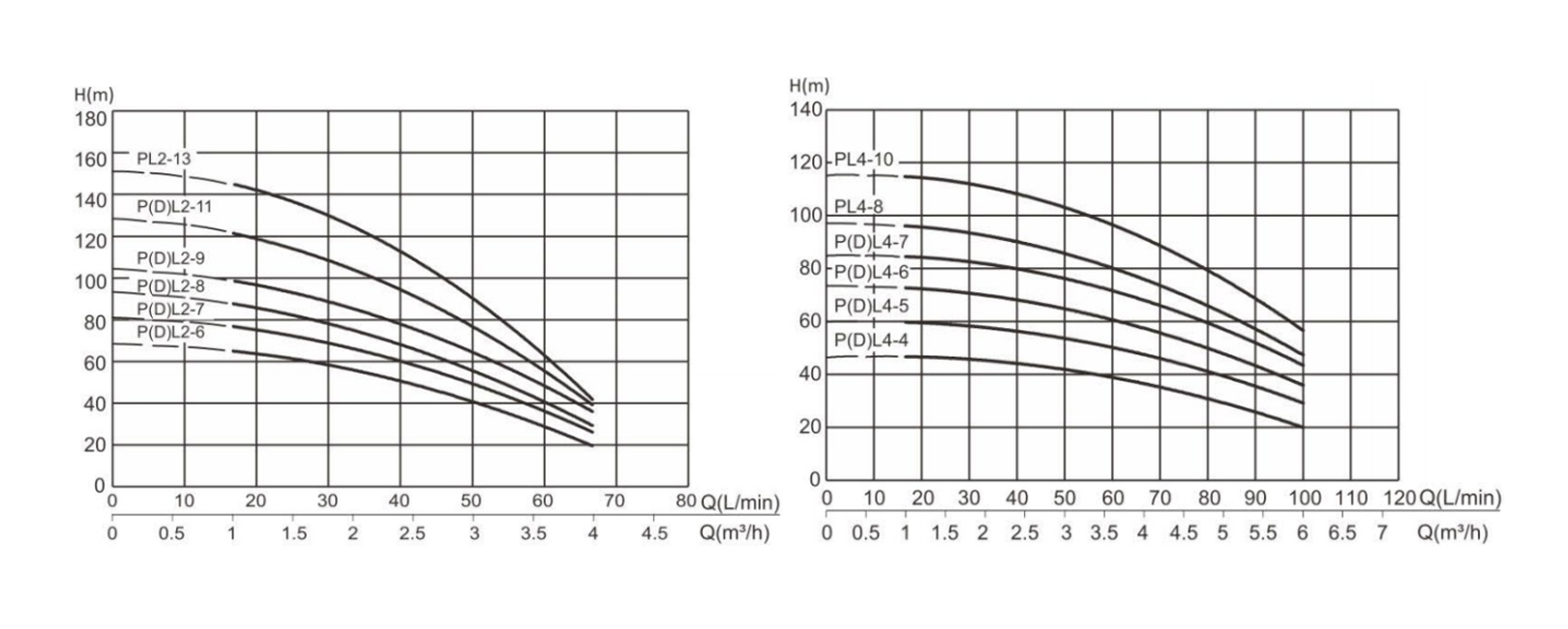

Model Outlet Motor power Rated voltage Rated current Rated flow Rated head Max. flow Max. head Impeller passage (50Hz) (mm) (kW) (HP) (V) (A) (m³/h) (m) (m³/h) (m) (mm) PDL2-6 25 1.1 1.5 220 7 2 53 4 69 - PDL2-7 25 1.1 1.5 220 7.82 2 65.5 4 82 - PDL2-8 25 1.5 2 220 9.5 2 73 4 94 - PDL2-9 25 1.5 2 220 9.5 2 84 4 105 - PDL2-11 25 1.8 2.5 220 11.3 2 102 4 130 - PDL2-6 25 1.1 1.5 380 2.5 2 53 4 69 - PL2-7 25 1.1 1.5 380 2.5 2 65.5 4 82 - PL2-8 26 1.5 2 380 3.4 2 73 4 94 - PL2-9 25 1.5 2 380 3.4 2 84 4 105 - PL2-11 25 1.8 2.5 380 4.0 2 102 4 130 - PL2-13 25 2.2 3 380 4.8 2 122 4 153 - PDL4-4 25 1.1 1.5 220 7.0 4 39 6 47 - PDL4-5 25 1.5 2 220 9.4 4 48 6 61 - PDL4-6 25 1.5 2 220 9.4 4 58 6 74 - PDL4-7 25 1.8 2.5 220 11.3 4 69 6 86 - PL4-4 25 1.1 1.5 380 2.5 4 39 6 47 - PL4-5 25 1.5 2 380 3.4 4 48 6 61 - PL4-6 25 1.5 2 380 3.4 4 58 6 74 - PL4-7 25 1.8 2.5 380 4 4 69 6 86 - PL4-8 25 2.2 3 380 4.8 4 77 6 98 - PL4-10 25 2.2 3 380 4.8 4 96 6 116 - -
