Product Description
The water-cooled design ensures that the pump can be used stranded, and the motor does not overheat and has a long life after a long time of operation.
Easy maintenance, thorough drainage, easy to use and other characteristics. The casing, screen and rotor shaft are made of stainless steel, and the pump body is plated with cast iron, which achieves a beautiful and generous appearance and strong corrosion resistance. Equipped with float switch, it can realize automatic control of starting and stopping with the change of liquid level. The motor is equipped with a protector that will automatically cut the new power supply when it encounters overheating or current, which ensures the safety and reliability of the pump running in a harsh environment.
Durability and Longevity: The Municipal Submerged Drainage Sewage Pump is fortified with a high-hardness steel ring that extends the lifespan of the pump by significantly decreasing wear on the impeller. This feature ensures the pump can endure the rigors of continuous operation within city drainage systems.
Energy Efficiency: Featuring hydraulic models and energy-efficient motors, this pump minimizes energy consumption, thereby lowering the overall operational expenses associated with urban sewage management.
Anti-Clogging Design: The pump is furnished with polyurethane semi-vortex impellers, which are effective in reducing the risk of clogging. This makes it ideal for managing sewage that may contain solid particles, a common characteristic of municipal wastewater.
Reliability in Harsh Conditions: With F-class insulation and IP68 protection, the pump is engineered to perform reliably even in conditions. Its integrated motor protection further bolsters its dependability.
Simplified Installation Process: The alignment of the suction and discharge ports on the pump facilitates straightforward installation. The inclusion of an 8-meter cable enhances the flexibility of installation options.
Versatility in Voltage Requirements: Capable of functioning on both three-phase 380V and single-phase 220V, the pump can be integrated into diverse power systems, accommodating a wide range of municipal power configurations.

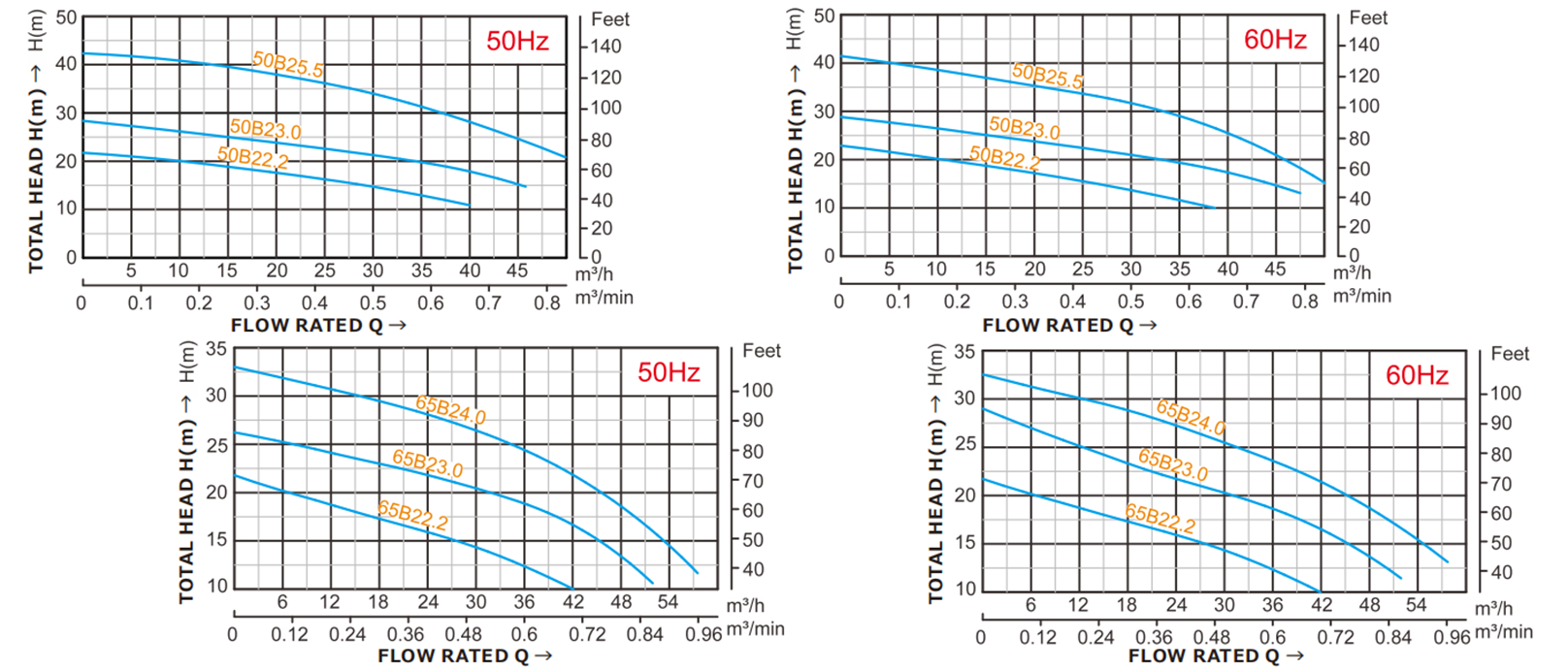

High Performance in Flow and Head: The pump is capable of achieving a flow rate of up to 200 m³/h and can handle a head as high as 52 meters, making it apt for addressing the varied demands of urban and suburban sewage systems.
Capability for Deep Water Operations: Designed for a submersion depth of 20 meters, this pump is well-suited for deep well and pit applications, ensuring effective drainage in challenging urban settings.
